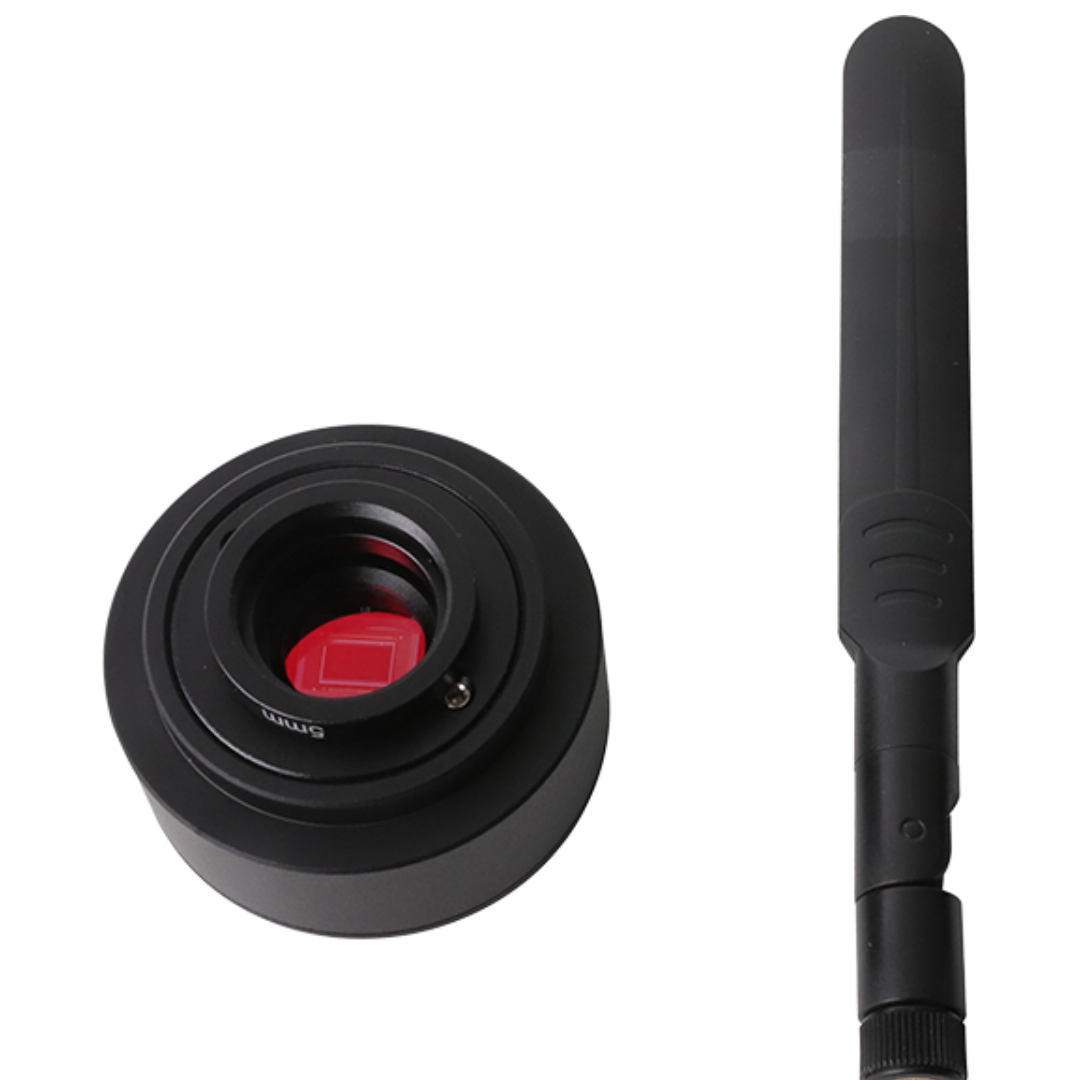

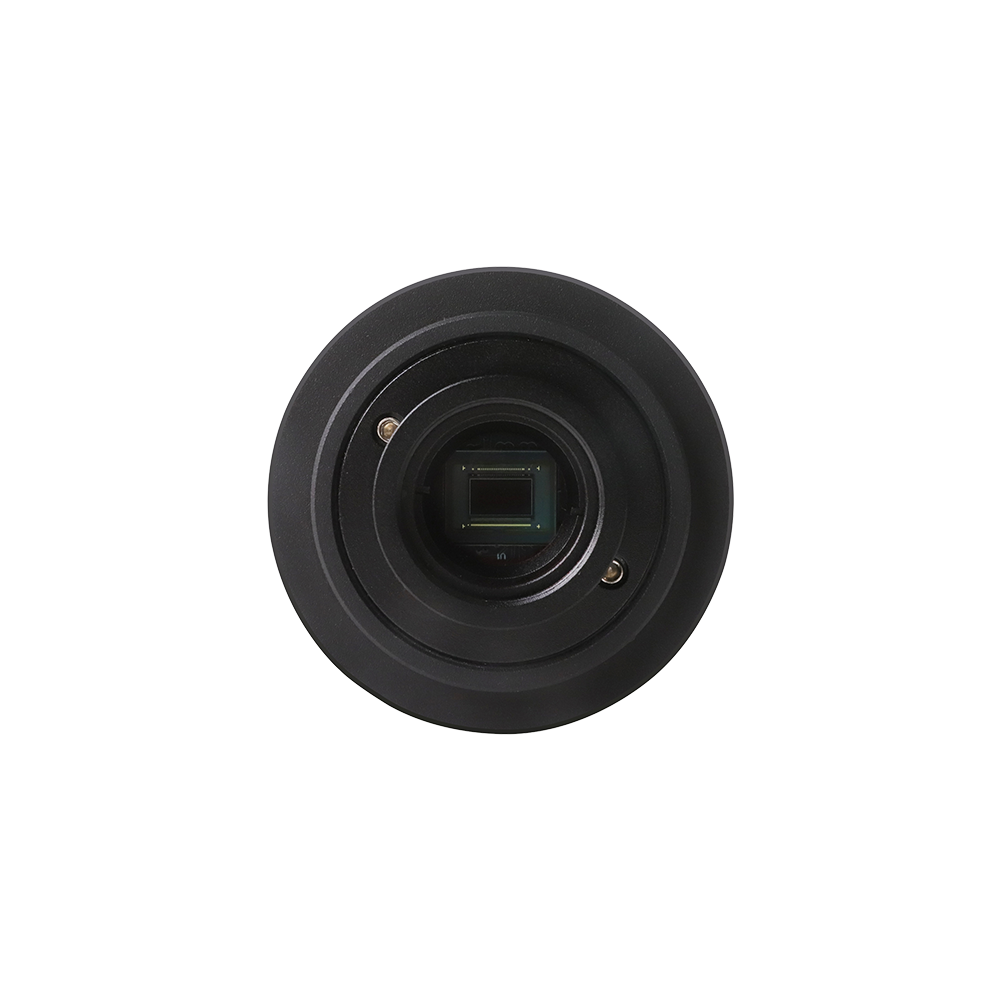

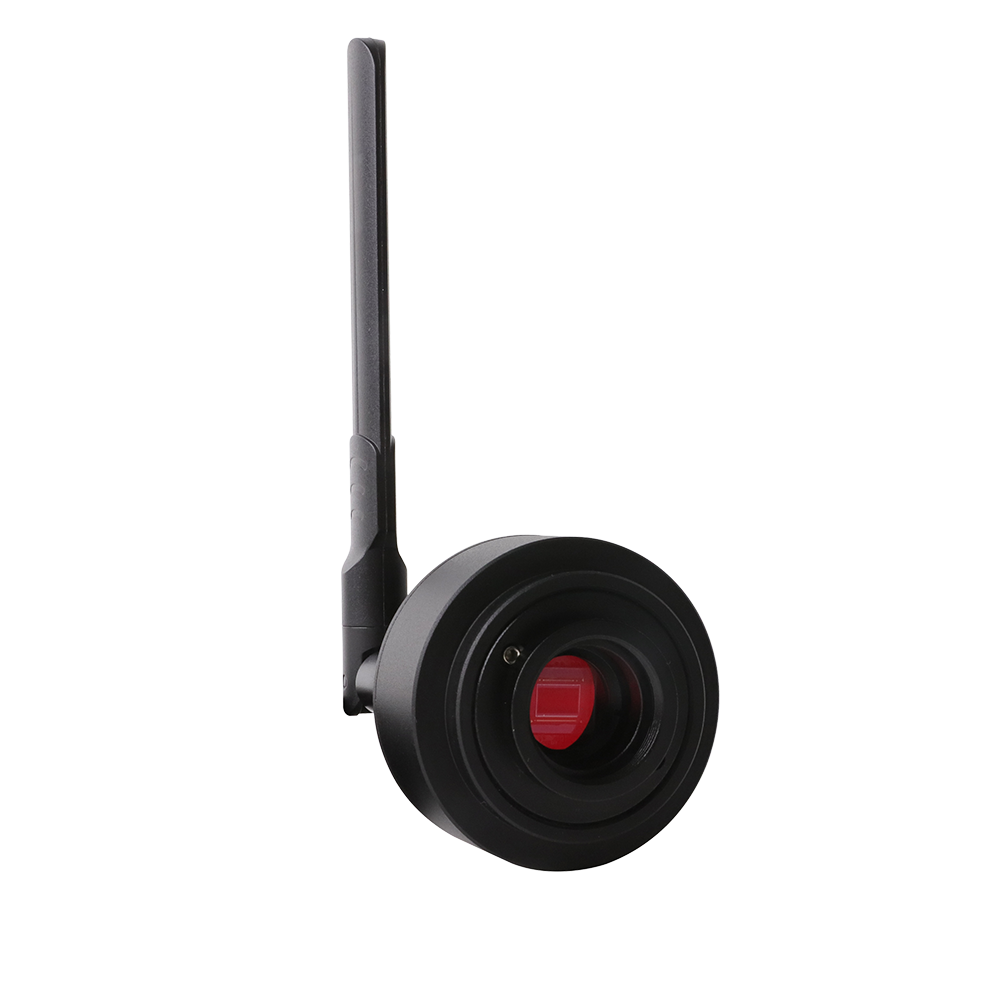

The Application of the WUCAM1080P Series Camera
The WUCAM series cameras can be connected to smart devices and computers through WiFi or directly connected to computers through USB Type-C interfaces, used for collecting videos and images of stereomicroscopes or biological microscopes,The main features are as follows:
l Sony Starvis 2 back illuminated CMOS sensor with lower noise and better photosensitive characteristics
l USB Type-C/WiFi multiple video outputs, using 802.11AC WiFi5 chip with high gain antenna, with higher transmission bandwidth
l Provide rich ISP processing functions, Hue, Saturation, ROI white balance
l ToupView/ToupLite software for PC, fully applicable for biological and stereological observations
l iOS/Android app for smart phones or tablets
WUCAM Series Camera Datasheet and Functions
|
Order Code |
Sensor & Size(mm) |
Pixel(μm) |
G Sensitivity |
Sensor Output |
Binning |
Exposure (ms) |
|
WUCAM1080PB |
Sony IMX678(C) |
2.0x2.0 |
1364mv with 1/30s |
60@1920*1080 |
1x1 |
0.04~1000 |
|
Camera Model |
USB Type-C(FPS/Resolution) |
WiFi(FPS/Resolution) |
|
WUCAM1080PB |
60@1920*1080 |
60@1920*1080 |
|
Interface |
Function Description |
|
|
USB |
Connect the USB Type C 5V/2A power supply to power the camera, at this time the camera provides WiFi connection mode. |
|
|
Slide Switch |
WiFi AP/STA mode sliding switch, dial to the left for AP, dial to the right for STA mode. |
|
|
RP-SMA Antenna Interface |
It is commonly used for antenna connections in wireless routers and other devices. |
|
|
LED |
LED status indicator |
|
|
Video Output Interface |
Function Description |
|
|
USB Interface |
Connect to PC USB Type C cable to transfer MJPEG real-time images, support 30fps@3840*2160(WUCAM8MPA) |
|
|
WiFi Interface |
Support 802.11ac protocols in AP/STA mode; 30fps@3840*2160(WUCAM8MPA) |
|
|
White Balance |
Auto, Manual and ROI White Balance |
|
|
Color Technique |
Ultra-Fine Color Engine |
|
|
ISP |
Exposure (Automatic/Manual Exposure)/ Gain, White Balance (Auto, Manual and ROI White Balance), Hue, Saturation Adjustment， Contrast Adjustment， Brightness Adjustment， Gamma Adjustment，50HZ/60HZ Anti-flicker， Mirror/Flip， Color to Grey, Network Bandwidth Adjustment |
|
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) |
|
|
Recording System |
Still Picture or Movie |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit) OSx(Mac OS X) Linux |
|
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
|
Memory: 4GB or More |
||
|
WiFi Adaptor: Support 802.11 ac |
||
|
Display:19” or Larger |
||
|
CD-ROM |
||
|
Operating Temperature (in Centidegree) |
-10°~ 50° |
|
|
Storage Temperature (in Centidegree) |
-20°~ 60° |
|
|
Operating Humidity |
30~80%RH |
|
|
Storage Humidity |
10~60%RH |
|
|
Power Supply |
USB Type C DC 5V/2A Adapter |
|
Packing Information for WUCAM Series Camera
|
Standard Packing List |
|
|
A |
Gift box: L:17cm W:15cm H:6cm (1pcs, 0.5kg/ box) |
|
B |
One WUCAM series camera |
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 5V 2A |
|
D |
USB Type C cable 1.5 metres |
