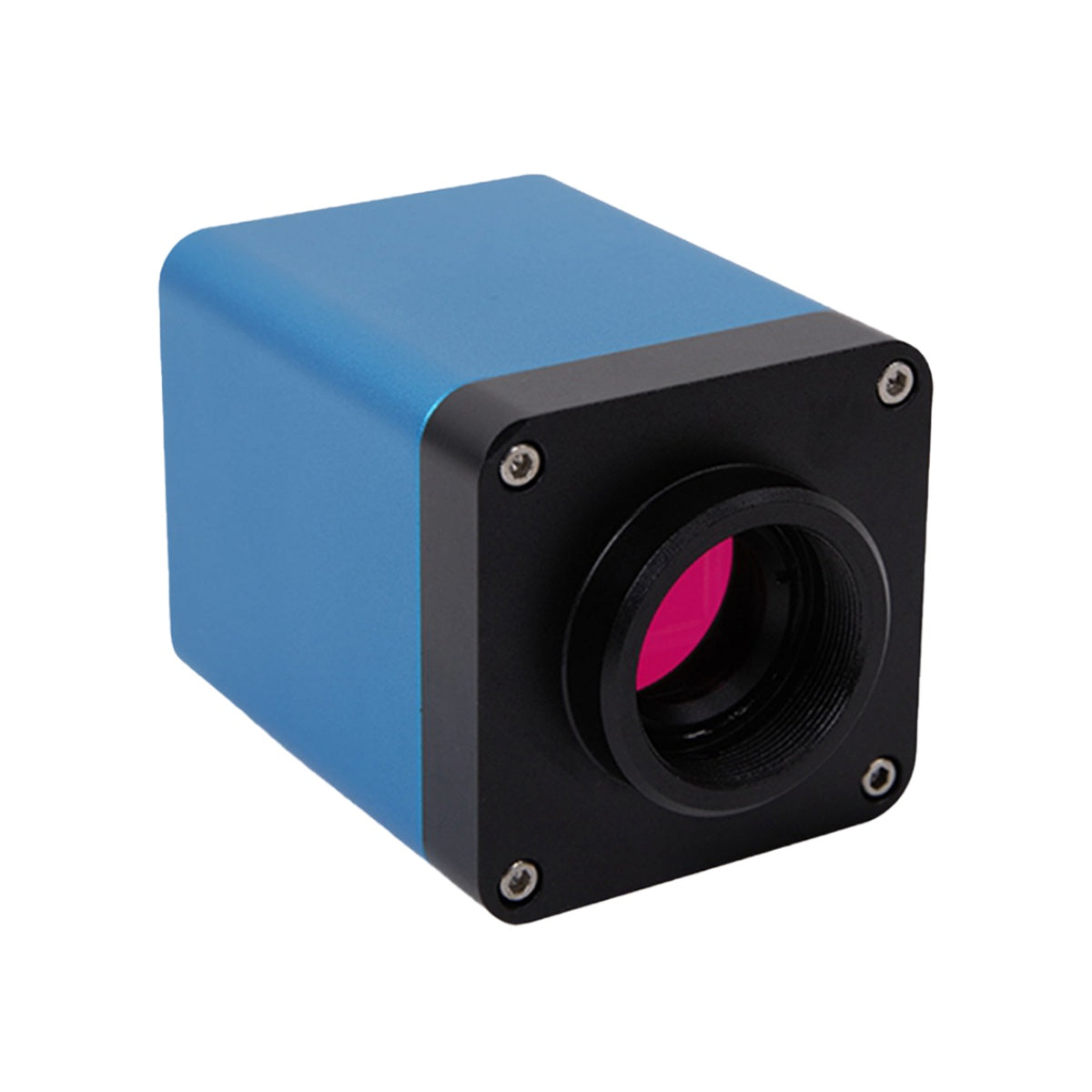

XCAMTOP4K_MINI Series Camera Application
XCAMTOP4K_MINI series camera is intended for acquisition of digital images from stereo microscopes, biological microscopes, or online interactive teaching. hhe basic characteristic is listed as below:
l Compact size, easy to integrate
l Sony STARVIS2 back-illuminated CMOS sensor
l 4K HDMI/ WiFi/ USB multiple video outputs
l 4K/1080P auto switching according to monitor resolution
l USB flash drive for captured image and video storage, support local preview and playback
l Supports USB Voice Control module, enabling real-time control of the camera through voice commands for snap, recording, freeze, and other operations
l Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
l Excellent ISP with local tone mapping and 3D denoising
l ToupView/ToupLite software for PC
XCAMTOP4K_MINI Series Camera Datasheet and Functions
|
Order Code |
Sensor& Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
Sensor Output FPS/Resolution |
Binning |
Exposure (ms) |
|
XCAMTOP4K8MPC_MINI |
IMX678(C) 1/1.8"(7.68x4.32) |
2.0x2.0 |
1364mv with 1/30s 0.15mv with 1/30s |
30@3840*2160 |
1x1 |
0.04~1000 |
|
XCAMTOP4K8MPD_MINI |
IMX585(C) 1/1.2"(11.14x6.26) |
2.9x2.9 |
5970mv with 1/30s 0.13mv with 1/30s |
30@3840*2160 |
1x1 |
0.04~1000 |
|
XCAMTOP4K8MPE_MINI |
IMX715(C) 1/2.8"(5.57x3.13) |
1.45x1.45 |
348mv with 1/30s 0.13mv with 1/30s |
30@3840*2160 |
1x1 |
0.04~1000 |
|
Camera Model |
Video Saving (FPS/Resolution) |
HDMI1.4 (FPS/Resolution) |
USB (FPS/Resolution) |
WiFi (FPS/Resolution) |
|
XCAMTOP4K8MPC_MINI |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 30@2688*1512 30@1920*1080 |
30@3840*2160 30@1920*1080 30@1280*720 |
|
XCAMTOP4K8MPD_MINI |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 30@2688*1512 30@1920*1080 |
30@3840*2160 30@1920*1080 30@1280*720 |
|
XCAMTOP4K8MPE_MINI |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 30@2688*1512 30@1920*1080 |
30@3840*2160 30@1920*1080 30@1280*720 |
|

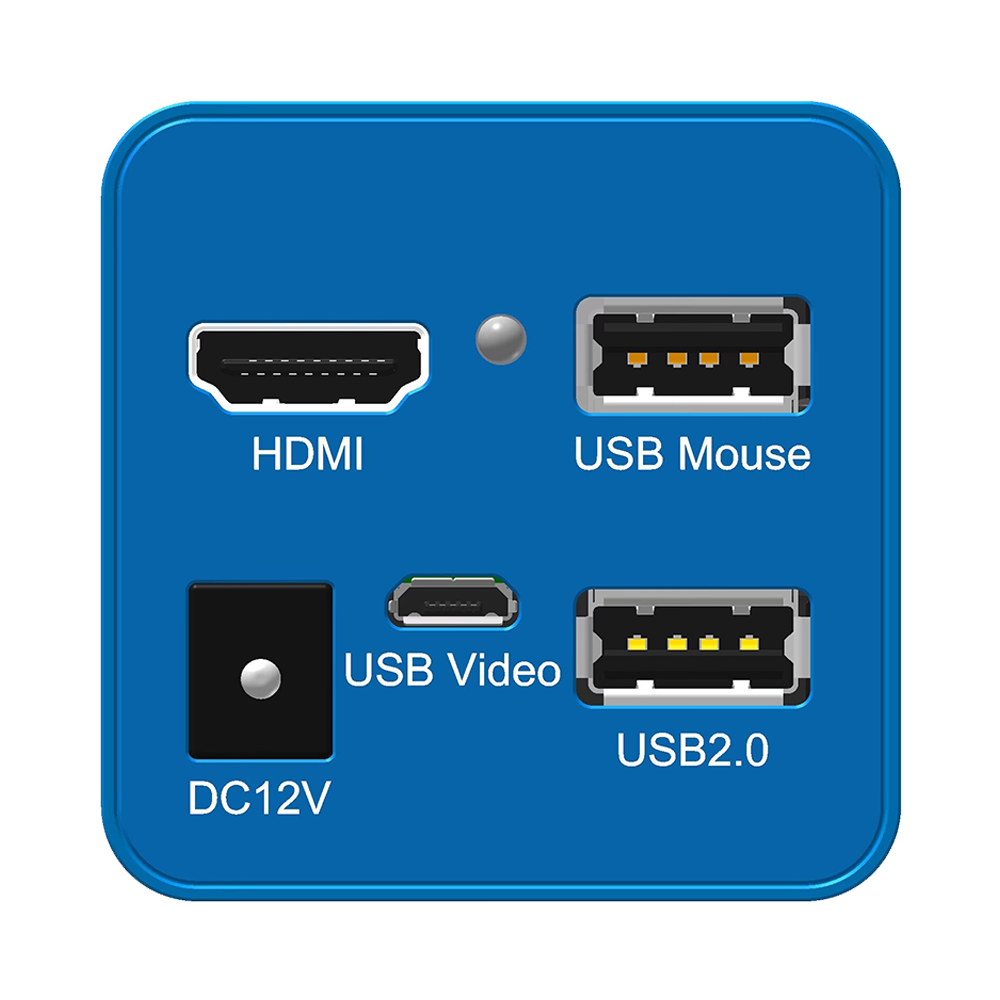

Interfaceor Button |
Function Description |
|
USB Mouse |
Connect USB mouse for easy operation with embedded XCamView software |
|
USB Video |
Connect a Micro USB cable to a computer terminal to achieve video image transmission |
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
DC12V |
Power adapter connection (12V/1A) |
|
USB2.0 |
Connect USB flash drive to save pictures and videos Connect USB microphone to record audio and video Connect the 5G WiFi adapter module to achieve wireless video and image transmission Connect the USB Voice Control module to enable real-time control of camera snap, recording, freeze, and other operations through voice commands |
|
LED |
LED status indicator |
|
Video OutputInterface |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P |
|
WiFi Interface |
Connecting 5G WiFi adapter (USB2.0 slot) in AP/ShA mode |
|
USB Video Interface |
Connecting Micro USB port of PC for video transfer MJPEG format video |
|
Other Function |
Function Description |
|
Video Saving |
Video format:8M (3840*2160) H264 encoded MP4 file Video saving frame rate :30fps |
|
Image Capture |
8M (3840*2160) JPEG/hIFF image in USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
ISP |
Exposure(Automatic / Manual Exposure) / Gain ， White Balance(Manual / Automatic / ROI Mode)， Sharpening ， 3D Denoise ， Saturation Adjustment ， Contrast Adjustment ， Brightness Adjustment ， Gamma Adjustment ， Color Conversion ， 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out (Up to 10X), Horizontal/Vertical Flip, Freeze, Cross Line, Overlay, Compare (Comparison between real time video and images in USB flash drive), Embedded Files Browser, Video Playback, Measurement Function |
|
Embedded RhC(Optional) |
ho support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / hraditional Chinese / Korean / hhailand / French / German / Japanese / Italian / Russian |
|
Software Environment under WiFi/USB Video Output |
|
|
USB Video Interface |
Connecting Micro USB port of PC for video transfer MJPEG format video |
|
Video Saving |
Static images or videos |
|
White Balance |
Auto White Balance |
|
Color hechnique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Windows/Linux/macOS/Android Multiple Platform SDK (Native C/C++, C#/VB.NEh, Python, Java, DirectShow, hwain, etc) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 4GB or More |
|
|
Ethernet Port: RJ45 Ethernet Port |
|
|
Display:19” or Larger |
|
|
CD-ROM |
|
|
Operating Environment |
|
|
Operating hemperature (in Centidegree) |
-10o~ 50o |
|
Storage hemperature (in Centidegree) |
-20o~ 60o |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |
Dimension of XCAMTOP4K_MINI Series
XCAMTOP4K_MINI Series Camera Packing Information
|
Standard Packing List |
|||
|
A |
Gift box: L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.57Kg/ box) |
||
|
B |
XCAMTOP4K_MINI Camera |
||
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
||
|
D |
USB Mouse |
||
|
|
|
||
|
F |
Micro USB cable |
||
|
Optional Accessory |
|||
|
G |
Voice Control Module |
||
|
H |
USB flash drive |
||
|
I |
Adjustable lens adapter |
C-Mount to Dia.23.2mm Eyepiece hube (Please choose 1 of them for your microscope) |
108001/AMA037 108002/AMA050 108003/AMA075 |
|
J |
Fixed lens adapter |
C-Mount to Dia.23.2mm Eyepiece hube (Please choose 1 of them for your microscope) |
108005/FMA037 108006/FMA050 108007/FMA075 |
|
Note: For I and L optional items, please specify your camera type (C-mount, microscope camera or telescope camera), houphek engineer will help you to determine the right microscope or telescope camera adapter for your application; |
|||
|
K |
108015(Dia.23.2mm to 30.0mm Ring)/Adapter rings for 30mm eyepiece tube |
||
|
L |
108016(Dia.23.2mm to 30.5mm Ring)/ Adapter rings for 30.5mm eyepiece tube |
||
|
M |
USB WiFi adapter |
||
