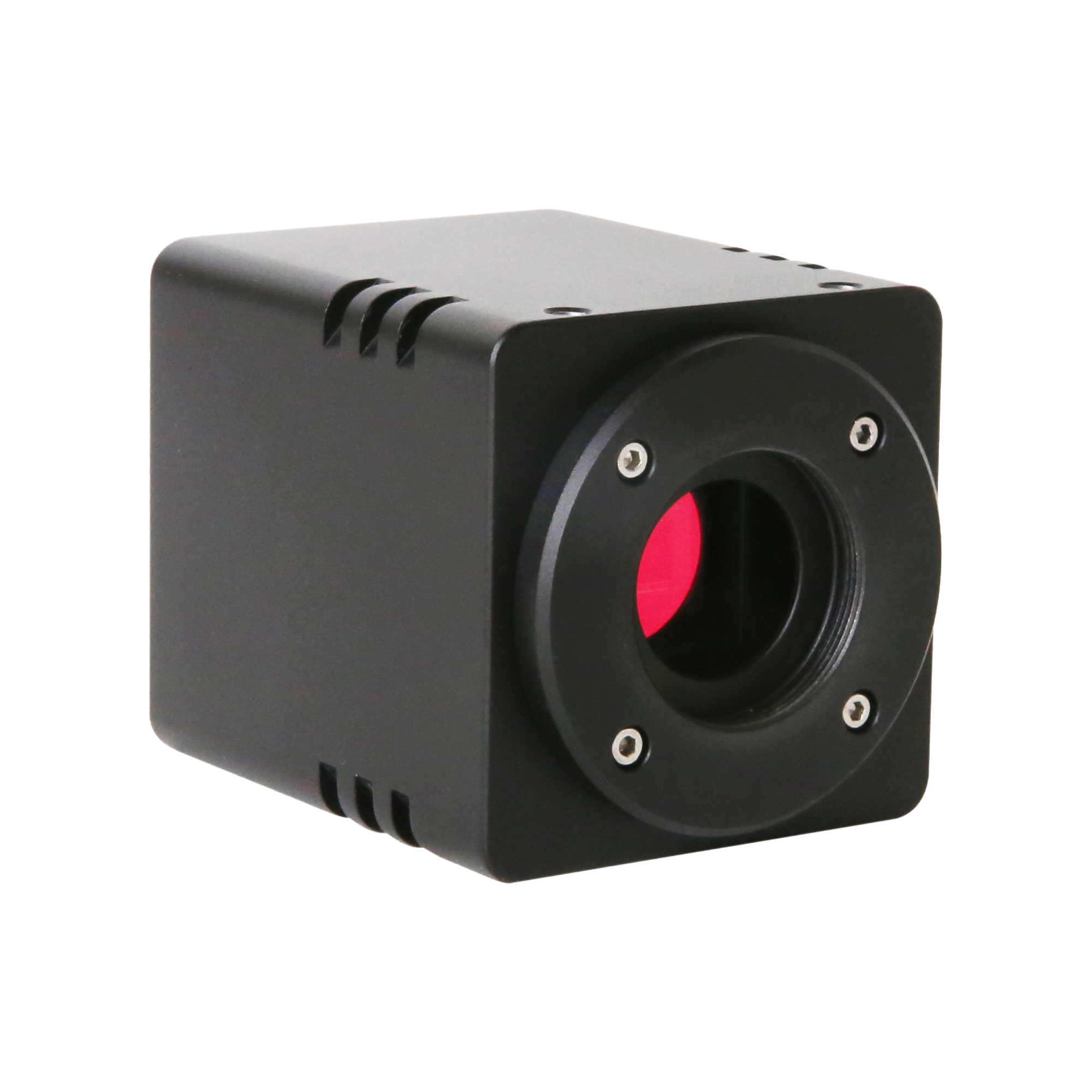

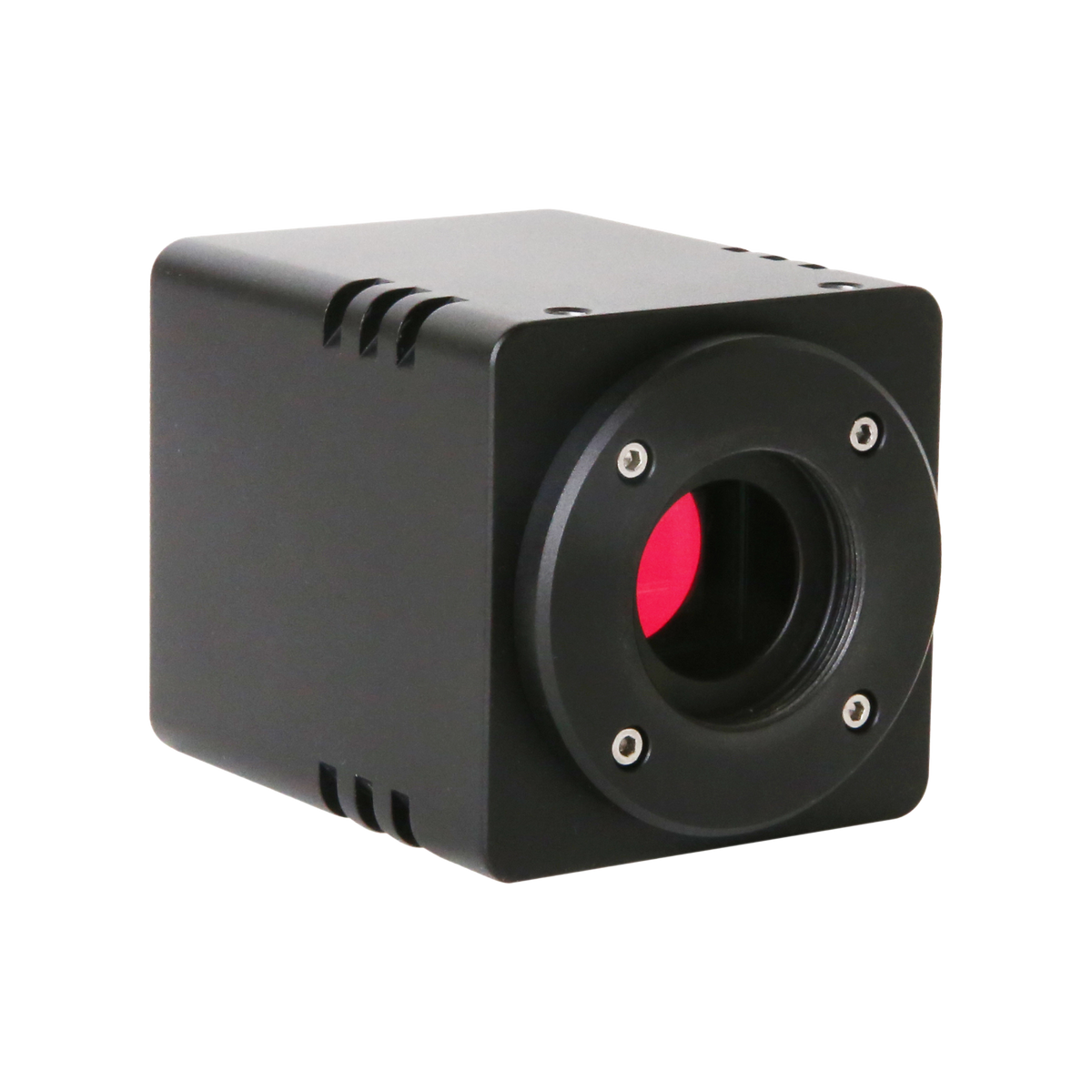

XFCAMTOP_MINI Series Camera Application
XFCAMTOP_MINI series camera is a camera designed that includes multiple modes of output, where X in ‘XFCAM ’ means a CMOS camera with multiple interfaces, and F means auto focus. It uses ultra-high-performance CMOS sensor. The camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an USB flash drive for on-site analysis and subsequent research.
The XFCAMTOP_MINI series camera comes with the built-in auto focus system, which can realize auto focus on specific areas of the scene.
By inserting a WiFi module or connecting with a computer via a USB Type-C cable, the user can directly control the camera's hardware with the software ToupView or ToupLite. XFCAMTOP_MINI series camera can be used for tool field inspection, microscope observation, etc.
The basic characteristic is listed as below:
l Small and compact size, convenient for customers to integrate and use
l Auto Focus is fast and precise, with a maximum accuracy of 0.01mm, and the precision is available for configuration
l The AutoFocus area can be selected, and the area size can be configured
l Sony Starvis2 or Starvis back-illuminated CMOS sensor
l 4K/1080P multiple video outputs C-mount CMOS Camera
l 4K/1080P HDMI auto switching according to monitor resolution
l USB flash drive for captured image and video storage, support local preview and playback
l Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
l Supports USB Voice Control module, enabling real-time control of the camera through voice commands for snap, recording, freeze, and other operations
l Excellent ISP with local tone mapping and 3D denoising
l ToupView/ToupLite software for PC
l iOS/Android applications for smart phones or tablets
2 XFCAMTOP_MINI Series Camera Datasheet and Functions
|
Order Code |
Sensor& Size(mm) |
Pixel(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure(ms) |
|
XFCAMTOP4K8MPC_MINI |
Sony IMX678(C) 1/1.8"(7.68x4.32) |
2.0x2.0 |
1364mv with 1/30s 0. 15mv with 1/30s |
30@3840*2160 |
1x1 |
0.04~1000 |
|
XFCAMTOP1080P2MPA_MINI |
Sony IMX385(C) 1/2"(7.2x4.05) |
3.75x3.75 |
1175mv with 1/30s 0. 15mv with 1/30s |
120@1920*1080 |
1x1 |
0.04~1000 |
|
Camera Model |
Video Saving (FPS/Resolution) |
HDMI1.4(FPS/Resolution) |
USB2.0(FPS/Resolution) |
WiFi(FPS/Resolution) |
|
XFCAMTOP4K8MPC_MINI |
30@3840*2160 |
30@3840*2160 |
30@3840*2160 30@2688*1512 30@1920*1080 |
30@3840*2160 30@1920*1080 30@1280*720 |
|
XFCAMTOP1080P2MPA_MINI |
100@1920*1080 |
60@1920*1080 |
80@1920*1080 |
60@1920*1080 60@1280*720 |

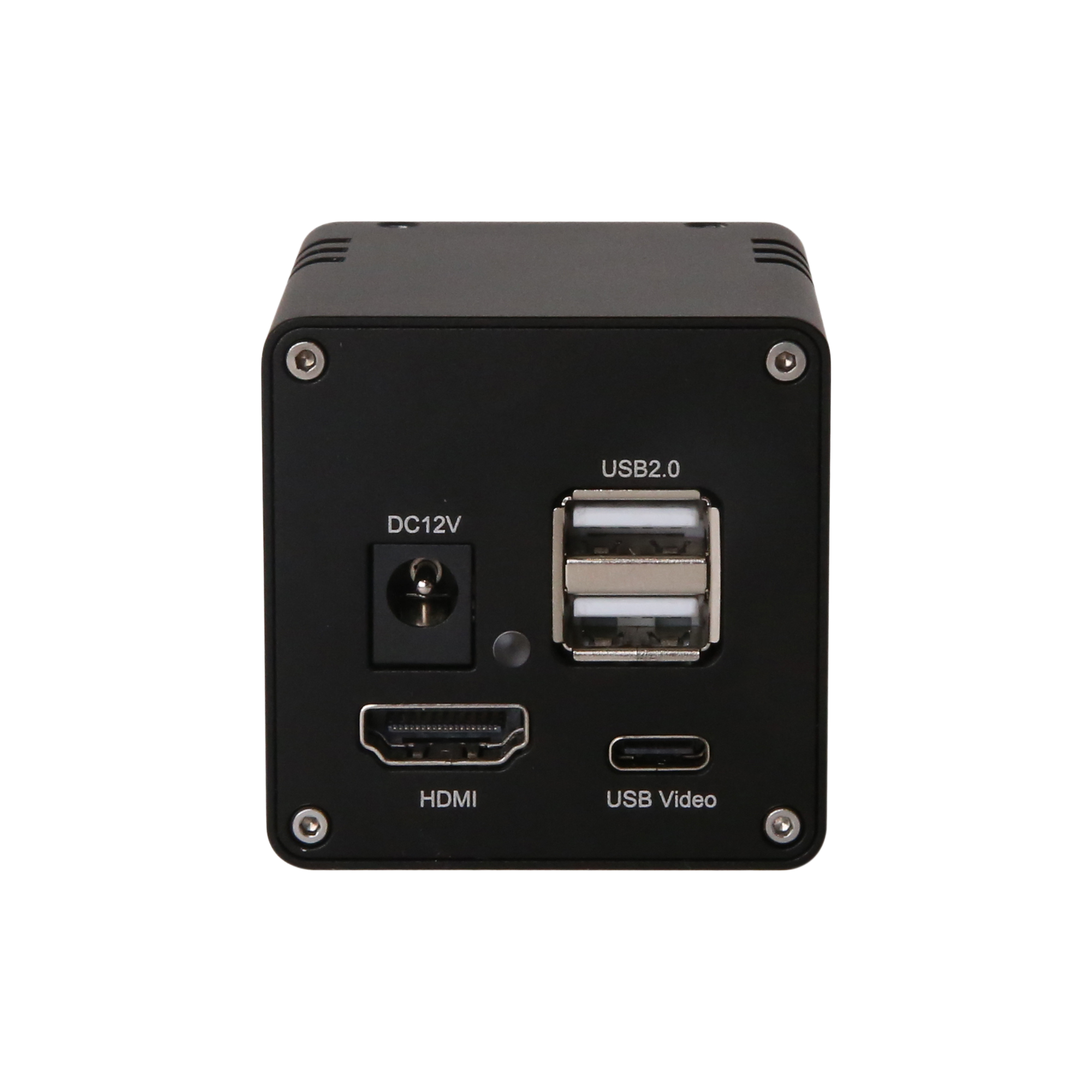

Figure 2 Available Ports on the Back Panel of the Camera Body
|
Interfaceor Button |
Function Description |
|
USB2.0(2) |
Connect USB mouse for easy operation with embedded XCamView software Connect USB flash drive to save pictures and videos Connect 5G WiFi module to transfer video wirelessly in real time Connect USB microphone to record audio and video Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations |
|
USB Video |
Connect the USB Type C cable to the USB port of the computer to achieve video image output. |
|
HDMI |
Comply with HDMI1.4 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors |
|
LED |
LED status indicator |
|
DC12V |
Power adapter connection (12V/1A) |
|
Video OutputInterface |
Function Description |
|
HDMI Interface |
Comply with HDMI1.4 standard 30fps@4K or 30fps@1080P(XFCAMTOP4K8MPC_MINI) 60fps@1080P(XFCAMTOP1080P2MPA_MINI) |
|
WiFi Interface |
Connecting 5G WiFi adapter (USB2.0 slot) in AP/STA mode |
|
USB Video Interface |
Connecting USB Type-C port of PC for video transfer MJPEG format video |
|
Other Function |
Function Description |
|
Video Saving |
Video format：8M (3840*2160) H264 encoded MP4 file(XFCAMTOP4K8MPC_MINI) 2M (1920*1080) H264 encoded MP4 file(XFCAMTOP1080P2MPA_MINI) Video saving frame rate :30fps(XFCAMTOP4K8MPC_MINI); 100fps（XFCAMTOP1080P2MPA_MINI） |
|
Image Capture |
8M (3840*2160 XFCAMTOP4K8MPC_MINI) JPEG/TIFF image in USB flash drive 2M (1920*1080 XFCAMTOP1080P2MPA_MINI) JPEG/TIFF image in USB flash drive |
|
Measurement Saving |
Measurement information saved in different layer with image content Measurement information is saved together with image content in burn in mode |
|
ISP |
Exposure(Automatic / Manual Exposure) / Gain ， White Balance(Manual / Automatic / ROI Mode)， Sharpening ， 3D Denoise ， Saturation Adjustment ， Contrast Adjustment ， Brightness Adjustment ， Gamma Adjustment ， Color Conversion ， 50HZ/60HZ Anti-flicker Function |
|
Image Operation |
Zoom In/Zoom Out (Up to 10X), Vertical/Flip, Freeze, Grids, Overlay, Auto Focus, Compare Image (Comparison between real time video and images in USB flash drive), Browser, Video Playback, Measurement Function |
|
Embedded RTC(Optional) |
To support accurate time on board |
|
Restore Factory Settings |
Restore camera parameters to its factory status |
|
Multiple Language Support |
English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Japanese / Italian / Russian |
|
Software Environment under WiFi /USB Video Output |
|
|
White Balance |
Auto White Balance |
|
Color Technique |
Ultra-Fine Color Engine |
|
Capture/Control SDK |
Standard API (Windows/Linux/Mac) |
|
Recording System |
Still Picture or Movie |
|
Operating System |
Microsoft® Windows®/ 8 / 8.1 /10/11(32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory: 8GB or More |
|
|
Display:19” or Larger |
|
|
Operating Environment |
|
|
Operating Temperature (in Centidegree) |
-10o~ 50o |
|
Storage Temperature (in Centidegree) |
-20o~ 60o |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 12V/1A Adapter |

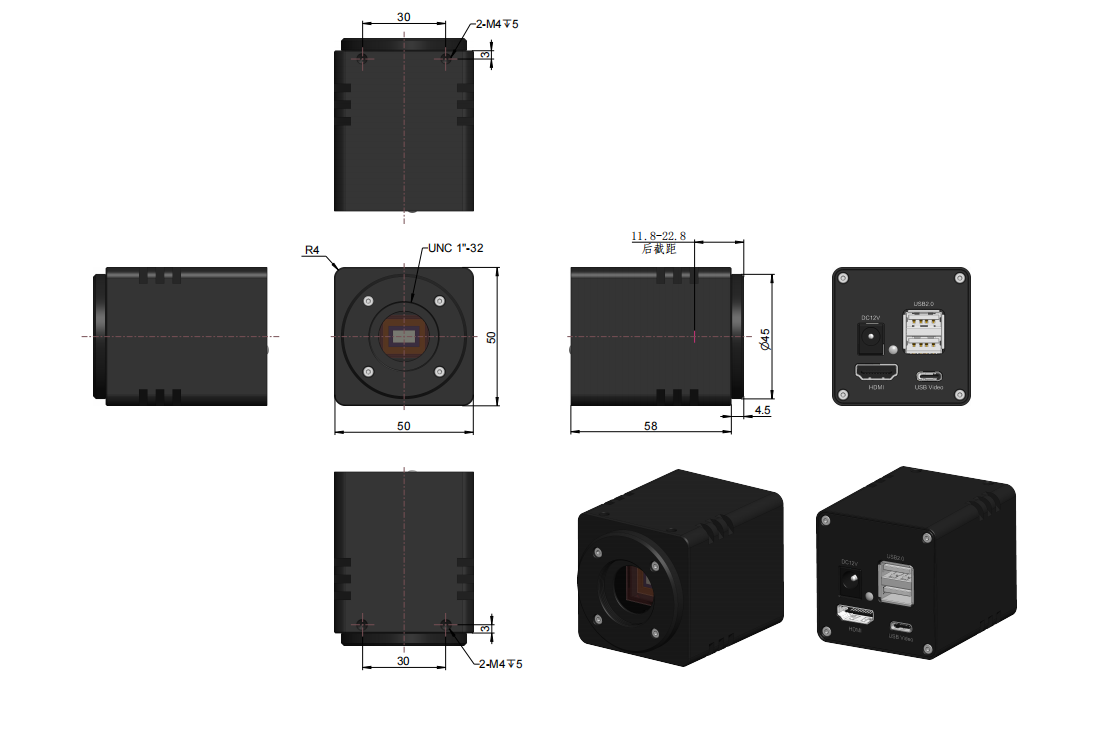

3 Dimension of XFCAMTOP_MINI Series
Figure 3 Dimension of XFCAMTOP4K_MINI Series
4 XFCAMTOP_MINI Series Camera Packing Information
Figure 4 XFCAMTOP_MINI Series Camera Packing Information
|
Standard Packing List |
|
|
A |
Gift box: L:16.3cm W:16.3cm H:7.4cm (1pcs, 1.48Kg/ box) |
|
B |
XFCAMTOP_MINI Camera |
|
C |
Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC EMI standard: FCC Part 15 Subpart B EMS standard: EN61000-4-2,3,4,5,6 |
|
D |
USB Mouse |
|
E |
HDMI Cable |
|
F |
USB Type-C to Type-A data cable 1.5 meters |
|
Optional Accessory |
|
|
G |
USB flash drive |
|
H |
USB WiFi adapter (Shape will vary with different models) |
