lConvert the LEICA trinocular microscope phototube/head/port (have standard 34.4 mm,1.35 inch inner diameter for the insertion end to phototube) to traditional C-Mount type(25.4 mm or 1 inch diameter with 32 threads per inch), T2 mount type(M42x0.75 mm metric thread) or M52 mount type(M52x0.75mm metric thread);
lWith different built-in reduction lens (2.25X, 1.5X,1.2X,1X, 0.8X,0.63X, 0.5X, 0.35X) for achieving better field of view from microscope
trinocular head(suitable for 2.7”, 1.8”, 4/3”, 1”, 2/3”, 1/1.8”, 1/2”, 1/2.5”,1/3” or 1/4” inch CCD or CMOS sensor chips);
lCan be installed in UIS trinocular tube such as: specially designed for LEICA DM series biology microscopes and industrial microscopes;
lBuild of material: stainless steel material;
lTelecentric optics with low light deficiency;
lParfocal with different microscope objective lenses;
lDiffraction limited MTF;
lAperture totally coupled with LEICA UIS microscope objective’s exit pupil;
lThe profile of one end of the adapter connecting to the microscope:
|
Model |
Photo |
Magnification |
Sensor Size |
Mount Type |
|
HM52 2.25X LK225XM52 |
|
2.25X |
2.7”,1.8”, |
M52 |
|
HT2 1.5X LK150XT2 |
|
1.5X |
1.8”, 4/3”, |
T2-Mount |
|
11541510-120 LK120XT2 HT2 1.2X(New) |
|
1.2X |
4/3”, |
T2 |
|
11541510 LK100XC HC 1.0X |
|
1.0X |
1”, |
C-Mount |
|
11541510-080 LK080XC HC 0.80X |
|
0.8X |
1”, |
C-Mount |
|
11541543 LK070XC HC 0.7X |
|
0.7X |
2/3”,1/1.8”,1/2” |
C-Mount |
|

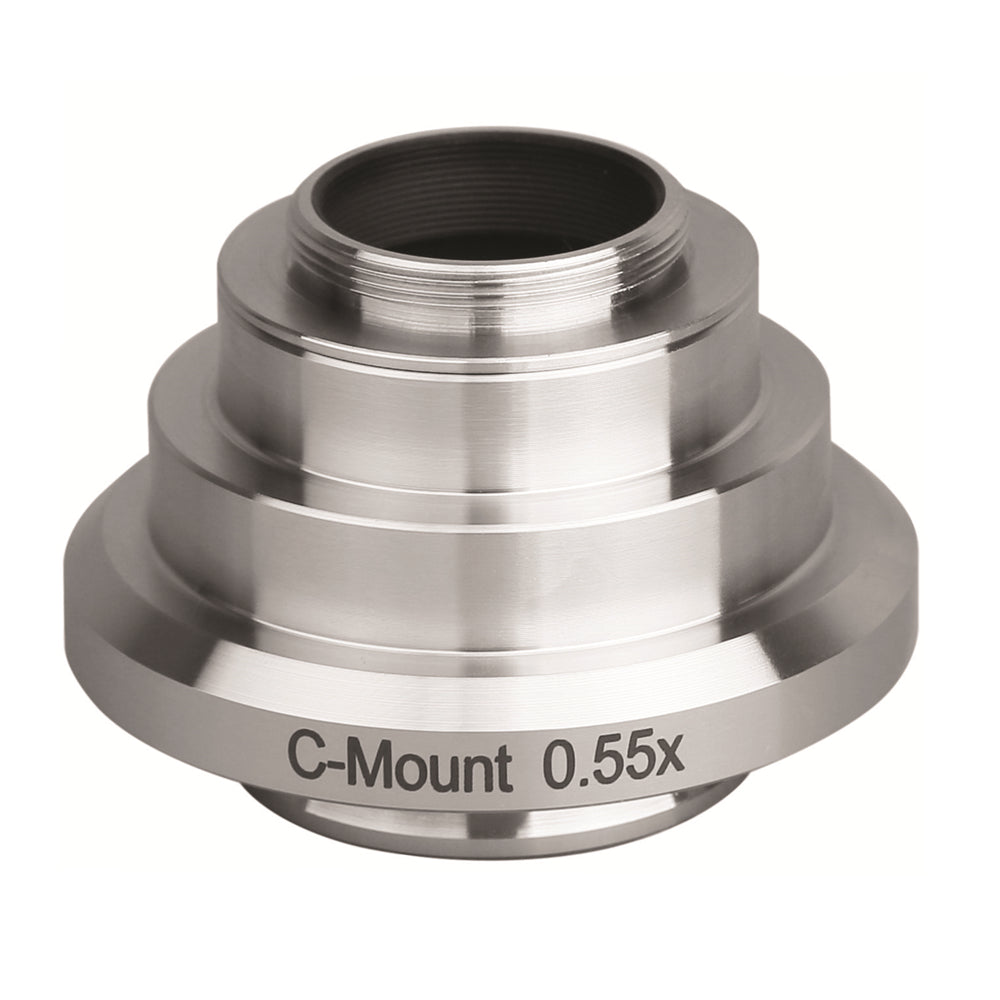

11541544 LK055XC HC-0.55X |
|
0.55X |
1/1.8”,1/2”,1/2.5” |
C-Mount |
|
11541512 LK035XC HC-0.35X |
|
0.35X |
1/2.5”,1/3”,1/4” |
C-Mount |
|
Supported |
Specially designed for LEICA DM series biology microscopes and industrial microscopes |
|||
